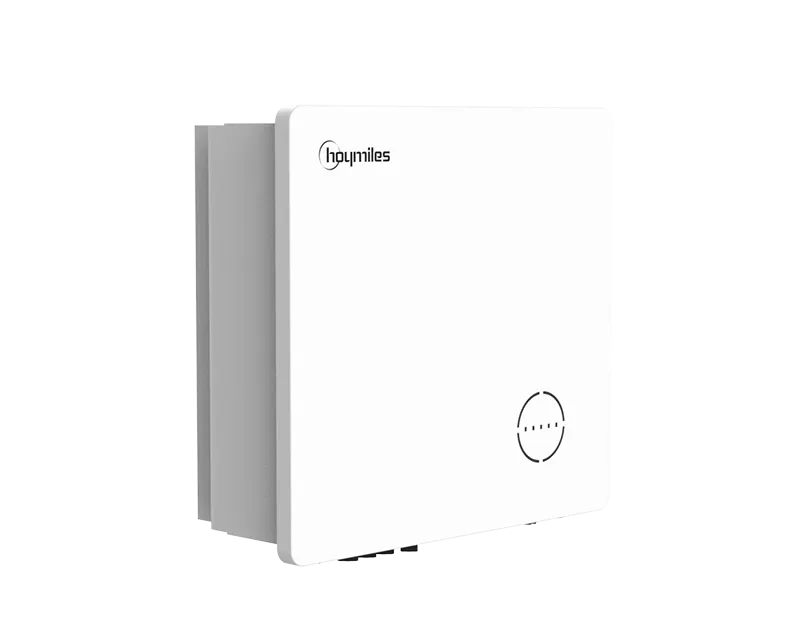

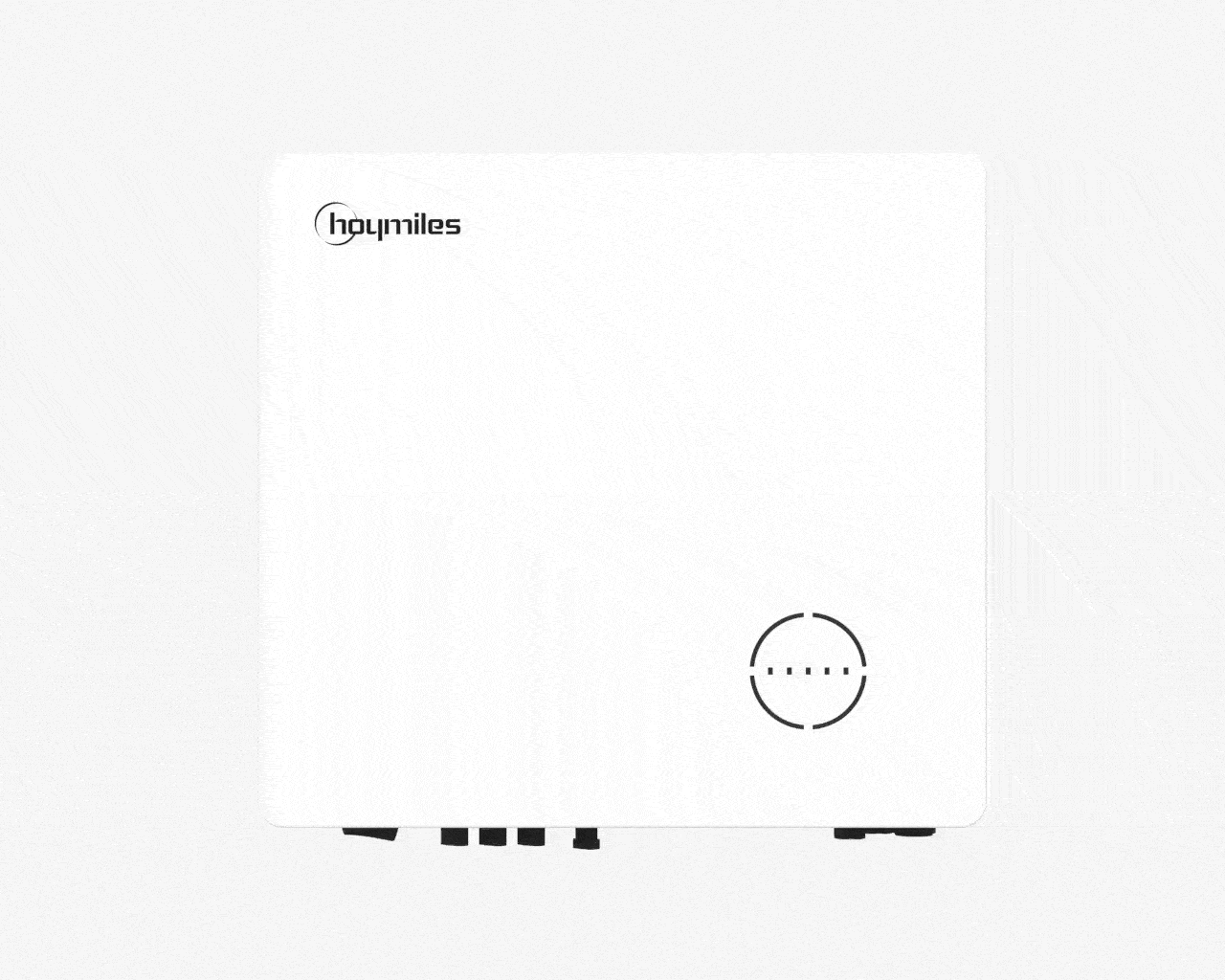

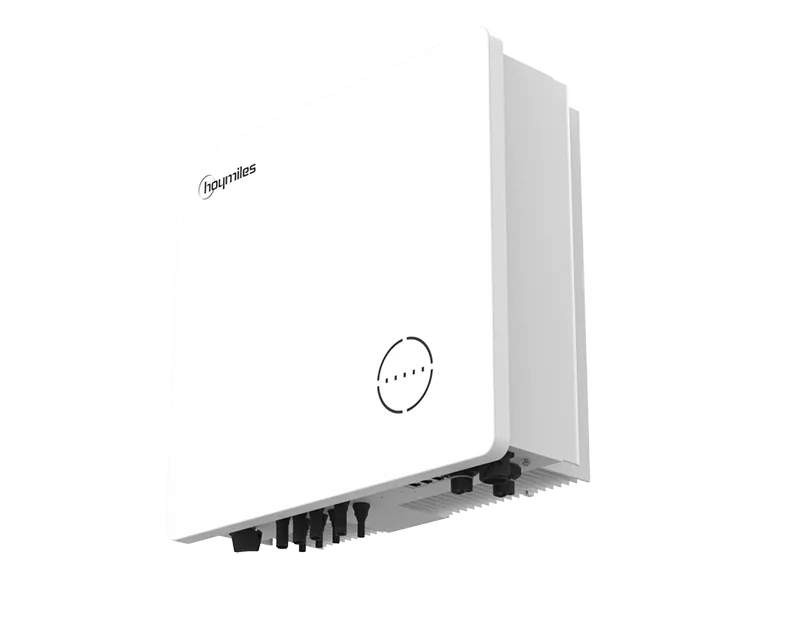

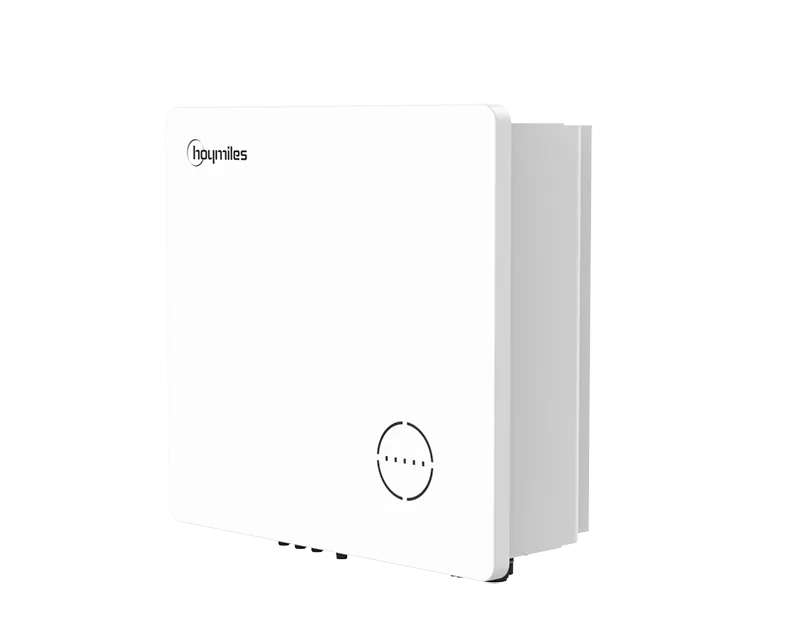

Hoymiles inverter:
HYT-HV-EUG1

The HYT-HV Series is a high-performance three-phase hybrid inverter with excellent reliability, including a power class from 5kW to 12kW.
Kapcsolat

Miért válassz Hoymiles invertert?

Kiváló kompatibilitás és hatékonyság
Az okos Plug & Play rendszerek a legtöbbet hozzák ki a napelempaneleidből.
Kiváló kompatibilitás és hatékonyság
Az okos Plug & Play rendszerek a legtöbbet hozzák ki a napelempaneleidből.
Kiváló kompatibilitás és hatékonyság
Az okos Plug & Play rendszerek a legtöbbet hozzák ki a napelempaneleidből.

Opciók

Hasonlítsd össze invertereink teljesítményét!
HYT-5.0HV-EUG1
HYT-6.0HV-EUG1
HYT-8.0HV-EUG1
HYT-10.0HV-EUG1
HYT-12.0HV-EUG1
Dimensions: 502 × 486 × 202mm Max. PV input current: 14A/14A
Weight: 26kg Max. output apparent power (on-grid): 5,500VA
Battery voltage range: 170V–600V Max. input apparent power (on-grid): 10,000VA
Max. battery charge/discharge current: 20A/20A Max. output apparent power (off-grid): 5,000VA
MPPT voltage range: 200V-950V Max. efficiency: 98%
Number of MPPTs: 2 Protection degree: IP65
Dimensions: 502 × 486 × 202mmMax. PV input current: 14A/14A
Weight: 26kgMax. output apparent power (on-grid): 6,600VA
Battery voltage range: 170V–600VMax. input apparent power (on-grid): 12,000VA
Max. battery charge/discharge current: 20A/20AMax. output apparent power (off-grid): 6,000VA
MPPT voltage range: 200V-950VMax. efficiency: 98%
Number of MPPTs: 2Protection degree: IP65
Dimensions: 502 × 486 × 202mmMax. PV input current: 14A/14A
Weight: 26kgMax. output apparent power (on-grid): 8,800VA
Battery voltage range: 170V–600VMax. input apparent power (on-grid): 16,000VA
Max. battery charge/discharge current: 30A/30AMax. output apparent power (off-grid): 8,000VA
MPPT voltage range: 200V-950VMax. efficiency: 98%
Number of MPPTs: 2Protection degree: IP65
Dimensions: 502 × 486 × 202mmMax. PV input current: 14A/28A
Weight: 26kgMax. output apparent power (on-grid): 11,000VA
Battery voltage range: 170V–600VMax. input apparent power (on-grid): 16,000VA
Max. battery charge/discharge current: 30A/30AMax. output apparent power (off-grid): 10,000VA
MPPT voltage range: 200V-950VMax. efficiency: 98%
Number of MPPTs: 2Protection degree: IP65
Dimensions: 502 × 486 × 202mm Max. PV input current: 14A/14A
Weight: 26kg Max. output apparent power (on-grid): 12,000VA
Battery voltage range: 170V–600V Max. input apparent power (on-grid): 16,000VA
Max. battery charge/discharge current: 30A/30A Max. output apparent power (off-grid): 12,000VA
MPPT voltage range: 200V-950V Max. efficiency: 98%
Number of MPPTs: 2 Protection degree: IP65

Inverter adatlap

  • Max. Efficiency 98%, European Efficiency 97.5%
  • Double MPPT tracker, up to 14A MPPT current
  • DC/AC ratio up to 150%
  • Built-in dry contact flexibly monitors earth fault alarm and provides load control or generator control
  • Ultralight for easy installation and space-saving
  • Support both DC-coupled and AC-coupled system
  • Remote monitoring through S-Miles Cloud
  • EMS integrated with self-consumption, economic mode, backup mode for multi-scenario application

10 years

  • EN 50549
  • VDE-AR-N 4105
  • AS/NZS 4777.2
  • IEC 62109-1
  • IEC 62109-2
  • EN 61000-6-1
  • EN 61000-6-3
